BLE BEACON

BLE BEACON

Build your application with data collected from Qilium IoT modules

Predict the right moment for machinery maintenance and benefit from assets health holistic view

Ensure people safety on dangerous site with fall detection, perimeter access control and people localisation

Monitor authorized presence on-site

Track & Trace assets to improve logistics and help workers to quickly find tools/vehicles

Use Proximity Marketing to detect customer presence and push promotional messages on their smartphones

Monitor health conditions of patient remotely and save time for treatments and caring

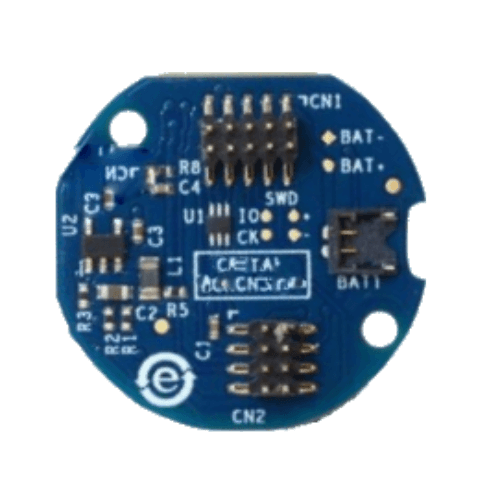

BEACON MODULES

QB01
QB02
QB03
BUILT-IN RADIOS Bluetooth 4.2 Bluetooth 5.0 Bluetooth 5.0
BATTERY TYPE CR2032 CR2032 CR2032
INDOOR LOCALISATION ACCURACY Down to 3 meters Down to 3 meters Down to 3 meters
MAXIMUM BLUETOOTH RANGE Up to 75 meters Up to 75 meters Up to 75 meters
ULTRA - CONFIGURABLE No Yes Yes
SUPPORTEDBLE PACKETS Eddystone - URL/UID
IBeacon
Alt-Beacon
Eddystone - URL/UID/TLM
IBeacon
Alt-Beacon
Customized
Eddystone - URL/UID/TLM
IBeacon
BUILD-IN SENSORS Button
2 x LED
Button
2 x LED
Accelerometer
Temperature
Accelerometer
Temperature
Microphone
Pressure
AVAILABILITY Now Q3-2019 2020
DEVELOPMENT KIT (DVK) On demand On demand 2020
DVK GATEWAY Gateway-001 Gateway-001 Gateway-001

CASING

BEACON_ADHESIVE (2)
ADHESIVE CASING

  • Adhesive
  • IP-67
  • CE
  • 45 X 11 mm
  • Code: BLE-IT001
INDUSTRIAL CASING

  • Screw-on
  • IP-67
  • CE
  • 54 x 11 mm
  • Code: BLE-IT002
BEACON_INDUSTRIAL (3)
BLE-KF001_a
PLASTIC KEY FOBS

  • Attachable
  • IP-67
  • CE
  • 54 x 11 mm
  • Code: BLE-KF001
METAL KEY FOBS

  • Attachable
  • IP-67
  • CE
  • 54 x 11 mm
  • Code: BLE-KF500
BLE-KF500
BEACON_WRISTBAND_3
SILICONE WRISTBAND

  • Portable
  • IP-67
  • CE
  • Tag: 36 x 7.8 mm
  • Strap : 245 x 16 x 2.4 mm
  • Code: BLE-WB100

NFC - RFID

NFC – RFID technology can optionally be added to Beacons giving access to: Registration, Identification, Payment, Secure authentication and Database interaction.

NFC TAG TYPE 4

  • Swipe’n Trust
  • ISO/IEC 14443-A
  • Reading up to 5 cm
NFC TAG TYPE 2

  • NDEF
  • ISO/IEC 14443-A
  • Reading up to 5 cm
NFC TAG TYPE 5

  • NDEF
  • ISO/IEC 15693
  • Reading up to 10 cm
